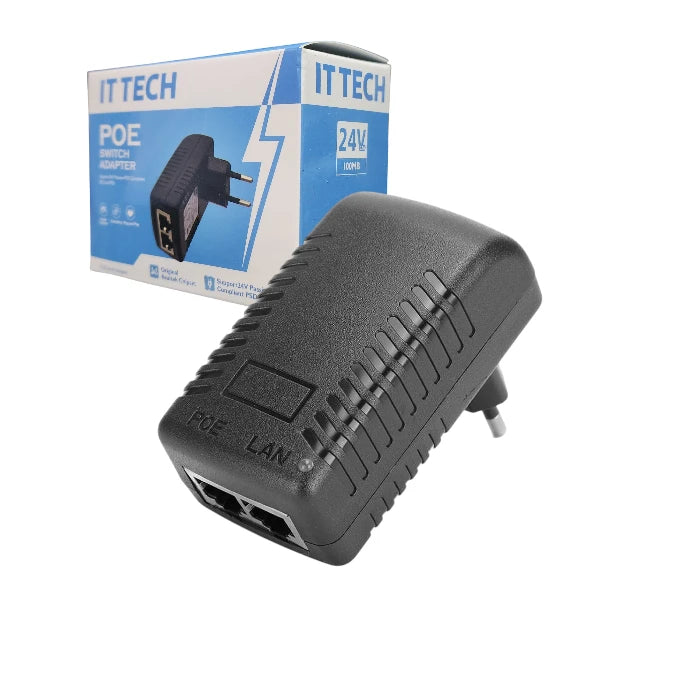

24V Passive PoE Switch Adapter (100Mbps, 1 LAN + 1 PoE Port) – 24V 0.5A

IT TECH 24V Passive PoE Switch Adapter – 100Mbps

Power a compatible 24V Passive PoE device while carrying data over a single Ethernet cable. This compact IT TECH PoE switch adapter is ideal for Wireless Access Points, ONU / Fiber Media Converters, and other 24V Passive PoE equipment.

Key Features

• 24V Passive PoE Output: 24V / 0.5A
• Fast Ethernet: Supports up to 100Mbps (10/100)
• 2-Port Design: 1x LAN (Data In) + 1x PoE (Data + Power Out)
• Wide Input Range: 100–240V AC
• Auto-Negotiation: Works with common 10/100 network equipment
• Use Cases: Wireless AP, ONU, Fiber Media Converter, and other devices that require 24V Passive PoE

Ports & Connectivity

• LAN Port: Connects to your router/switch (data input)
• PoE Port: Connects to the powered device (data + 24V power output)

Specifications

• Brand: IT TECH
• Type: Passive PoE Switch Adapter / Injector (24V)
• Network Speed: 10/100Mbps
• Output: 24V 0.5A (Passive PoE)
• Input: 100–240V AC
• Ports: 2 (1 LAN + 1 PoE)
• Compliance Marks: CE, RoHS (as shown on packaging)

Note: This is 24V Passive PoE (not 48V 802.3af/at). Please confirm your device supports 24V Passive PoE before purchase.
